DIY Heat Recovery Ventilator (HRV) Plans

Here are a set of plans for a relatively easy to build Heat Recovery Ventilator that should provide good performance and a good life.

An HRV pulls fresh air into the house and exhausts stale air to the outside.  In the HRV, the fresh and stale air pass through a heat exchanger that recovers most of the heat remaining in the stale air to heat the incoming fresh outside air -- thus providing a significant saving in energy to heat the incoming air.

DIY HRV

Thanks very much to Paul in BC for digging up this article and mailing me a copy!

DIY HRV Plans

This is an article that was published in the 80's and provides good detail on building a Heat Recovery Ventilator from Coroplast sheets.

The HRV is not an easy environment for materials in that water and even ice may be present at times.  I think that the Coroplast sheets should stand up well to this environment, but the plywood housing may have a limited life.  One suggestion I'd offer is to consider using Medium Density Overlay (MDO) plywood for the housing   MDO is a high quality plywood with resin impregnated face sheets -- it is used for chemical tanks and concrete forms it is quite durable and water resistant.  Most lumber yards can get it -- it costs about twice as much as regular plywood.

Tthe article is an excerpt from Solplan6: An Air Exchanger for Energy Efficient Well-Sealed Houses by Robert Besant -- this was a set of plans that covered both building the heat exchanger and also provided material on blower selection.  This set of plans used to be available for a small fee, but (as far as I can tell) is no longer offered -- if you have any leads on finding these (or other HRV plans), please let me know.

Note that this kind of ventilator will only be needed on a house that is very tight.  Most homes have more than enough natural leakage to provide fresh air.  Depending on the fans chosen, the ventilator will use a non-negligible amount of electricity, so it should not be used unless your house is tight enough to actually need the ventilation.

More on HRV's ...

Click on the pages below for full size..

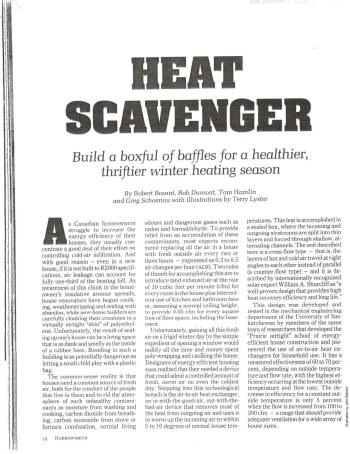

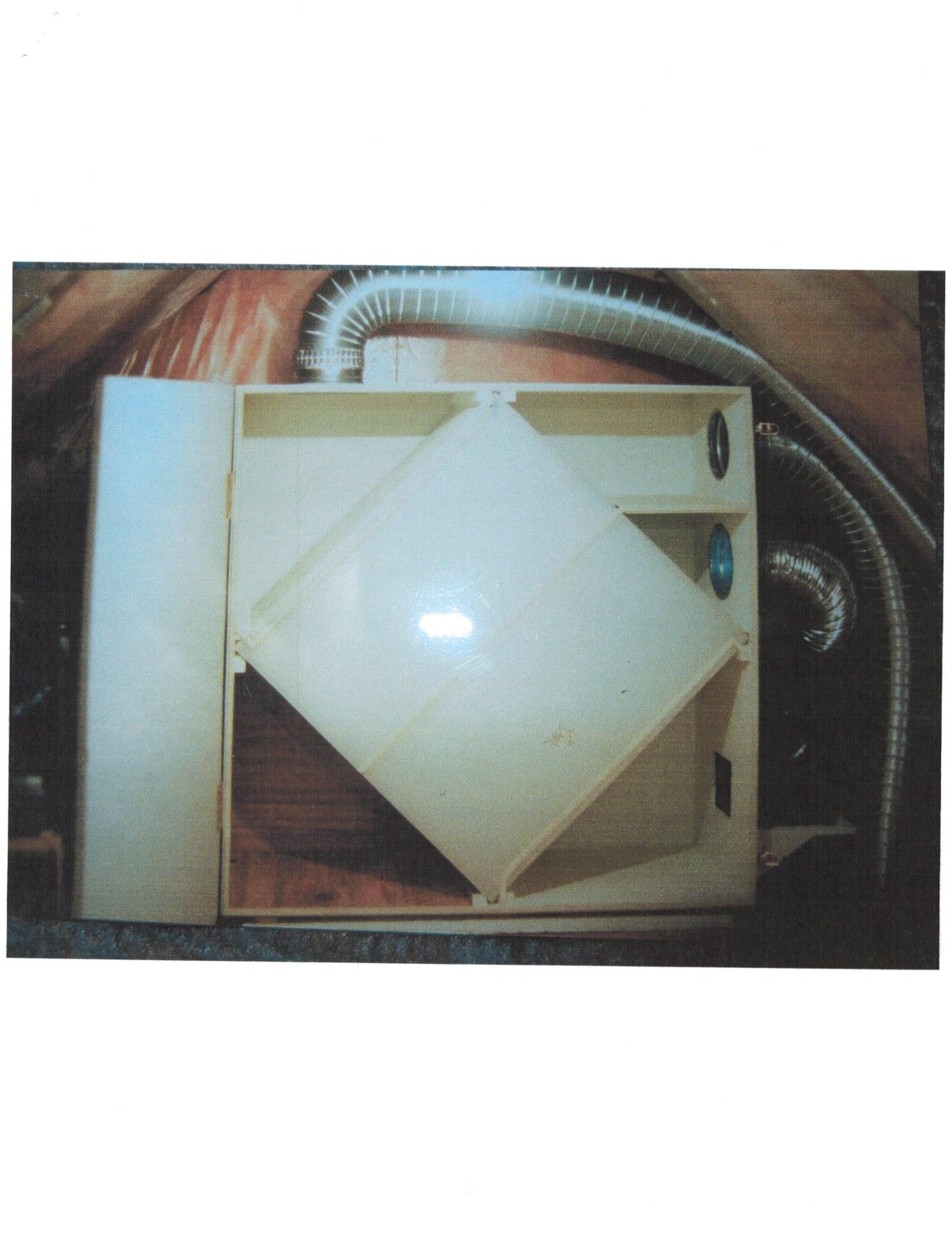

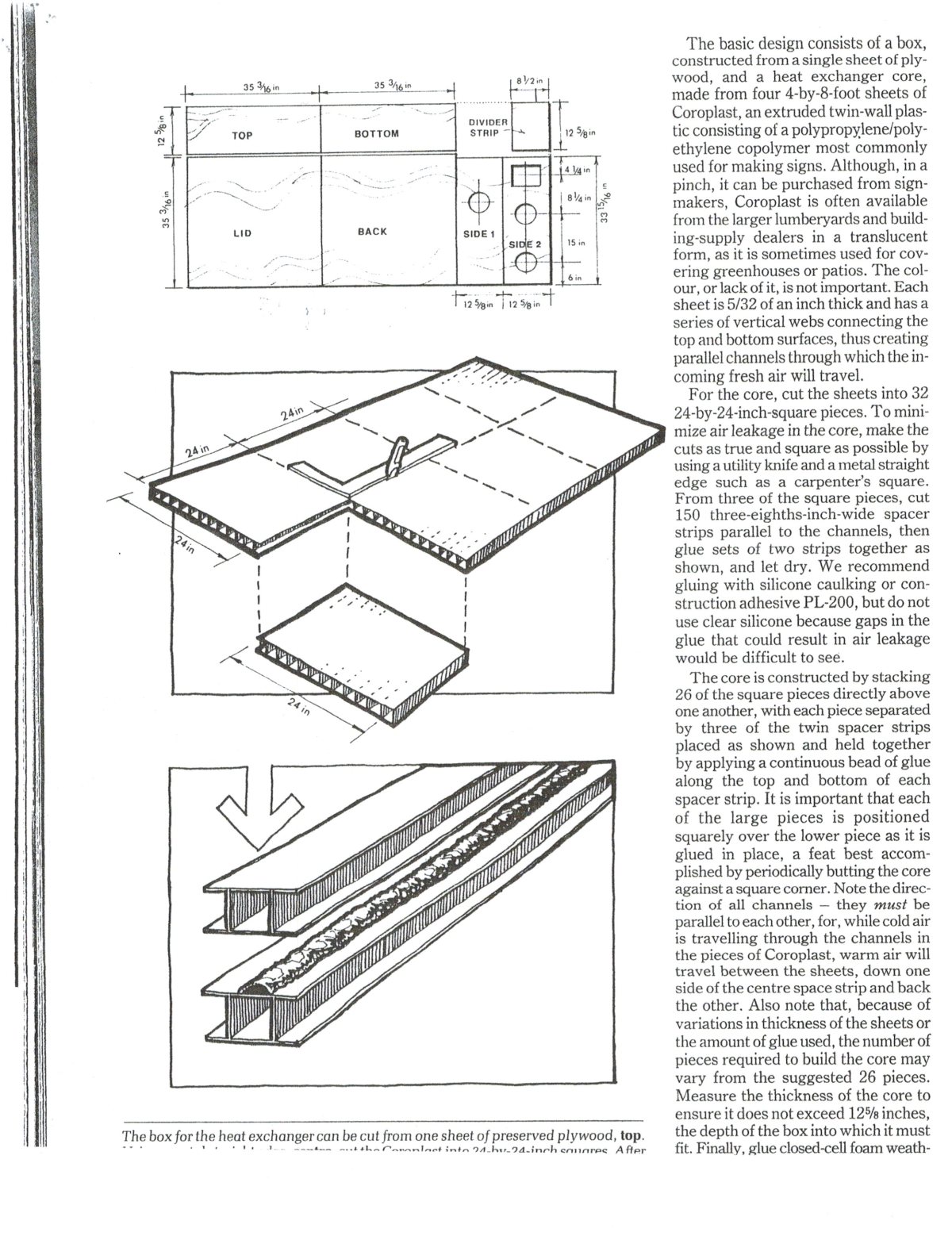

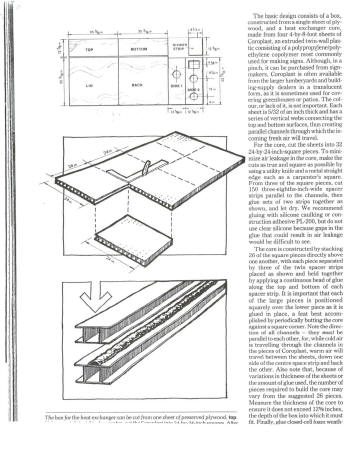

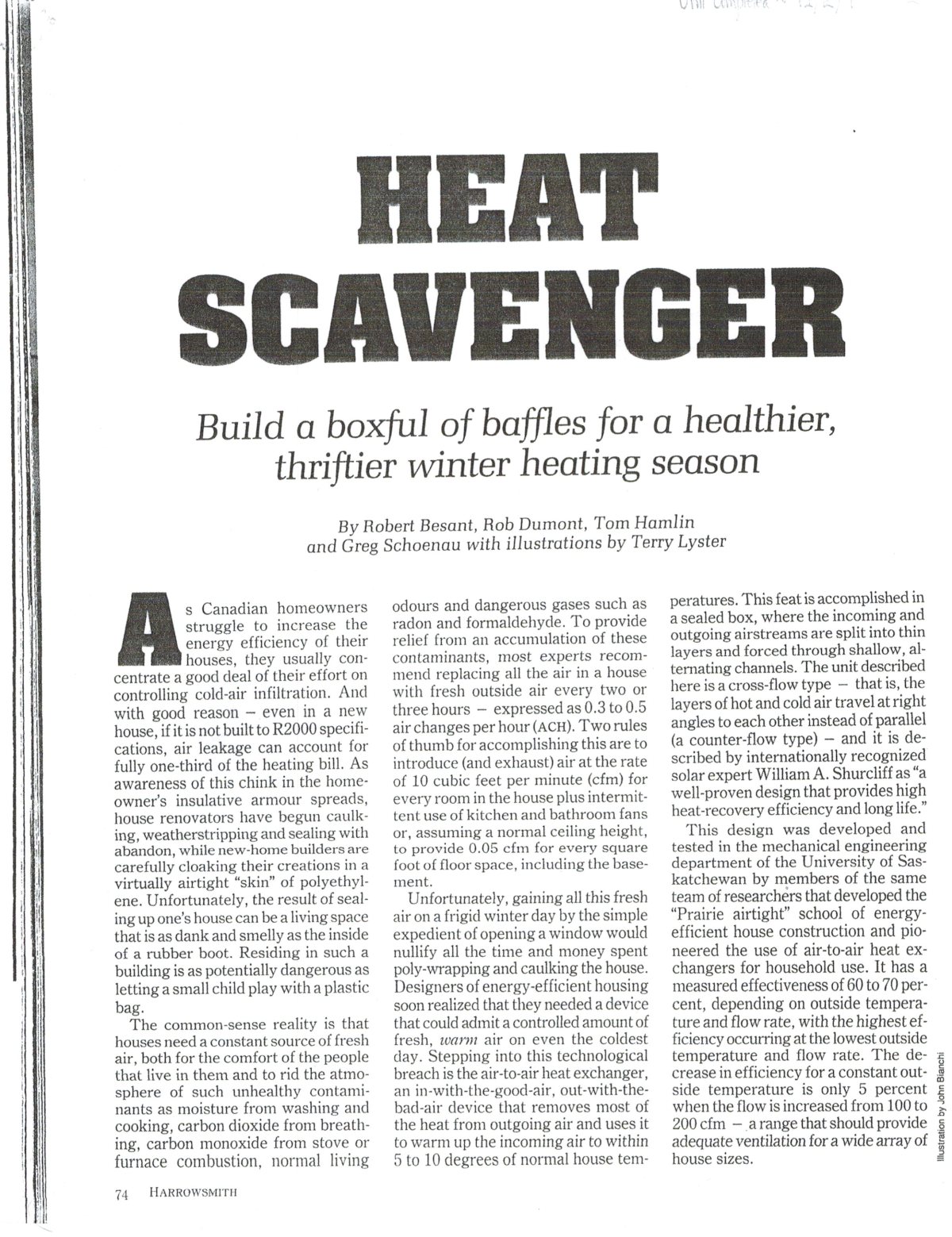

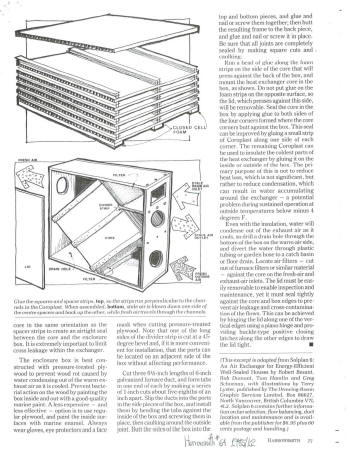

DIY HRV plans DIY HRV
DIY HRV DIY HRV
